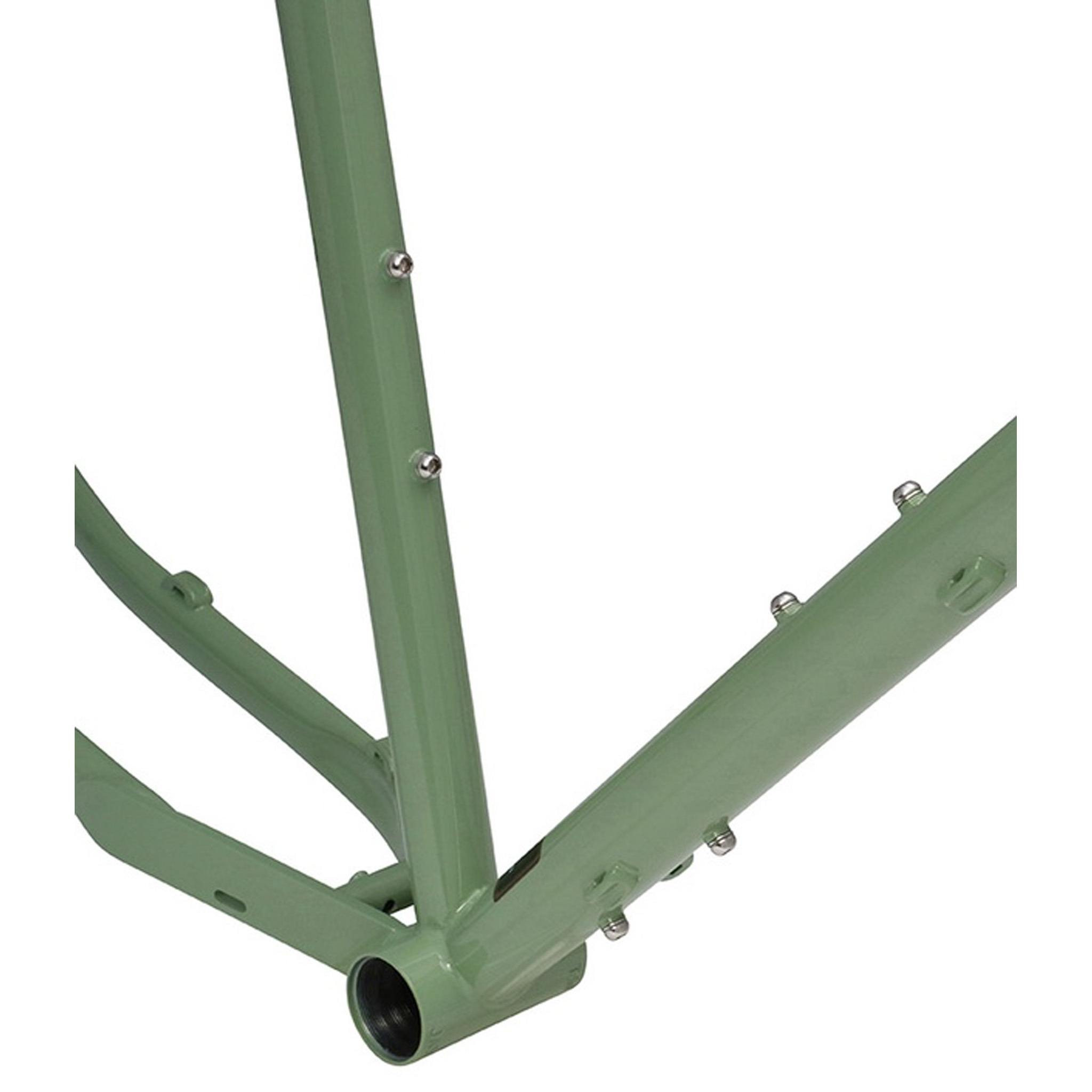

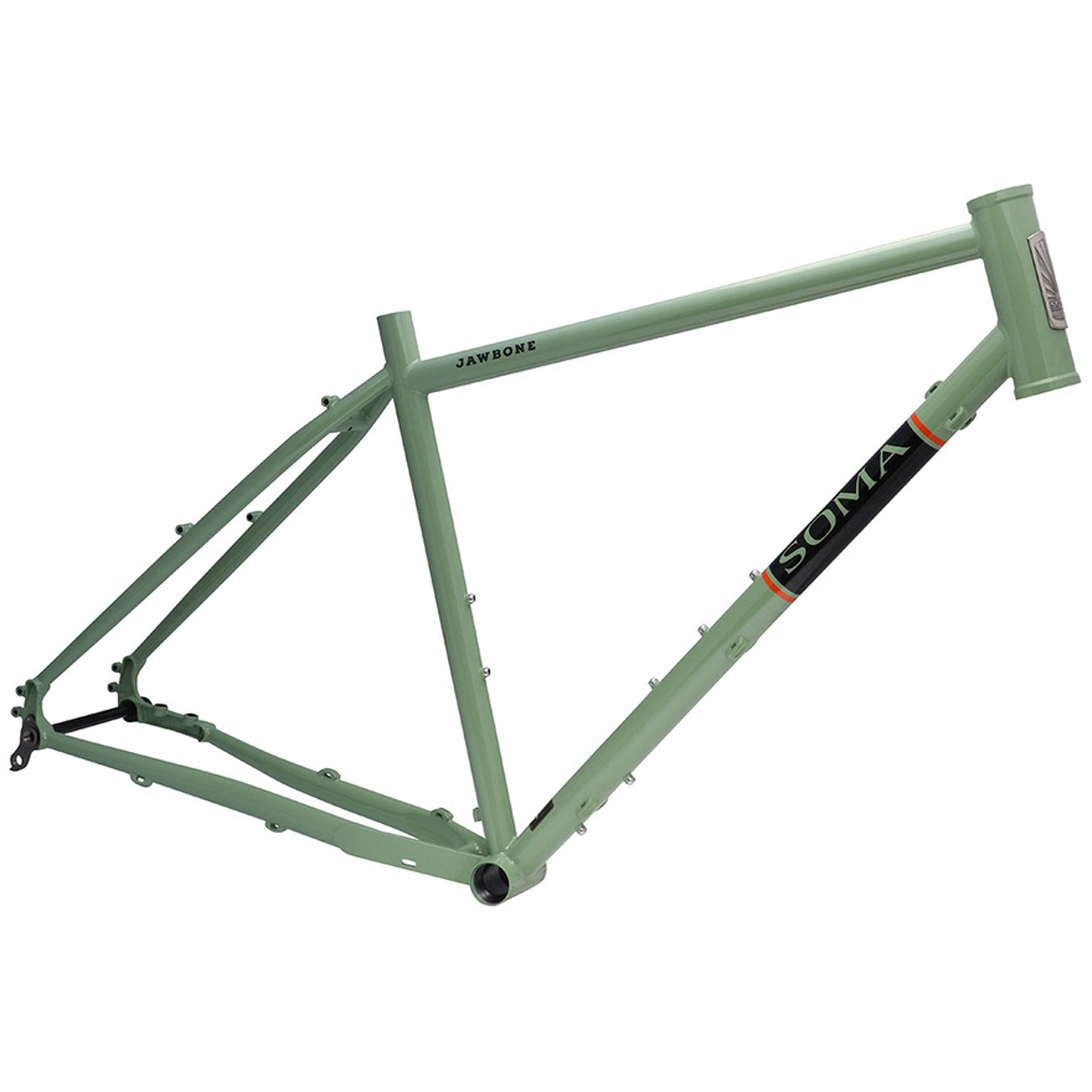

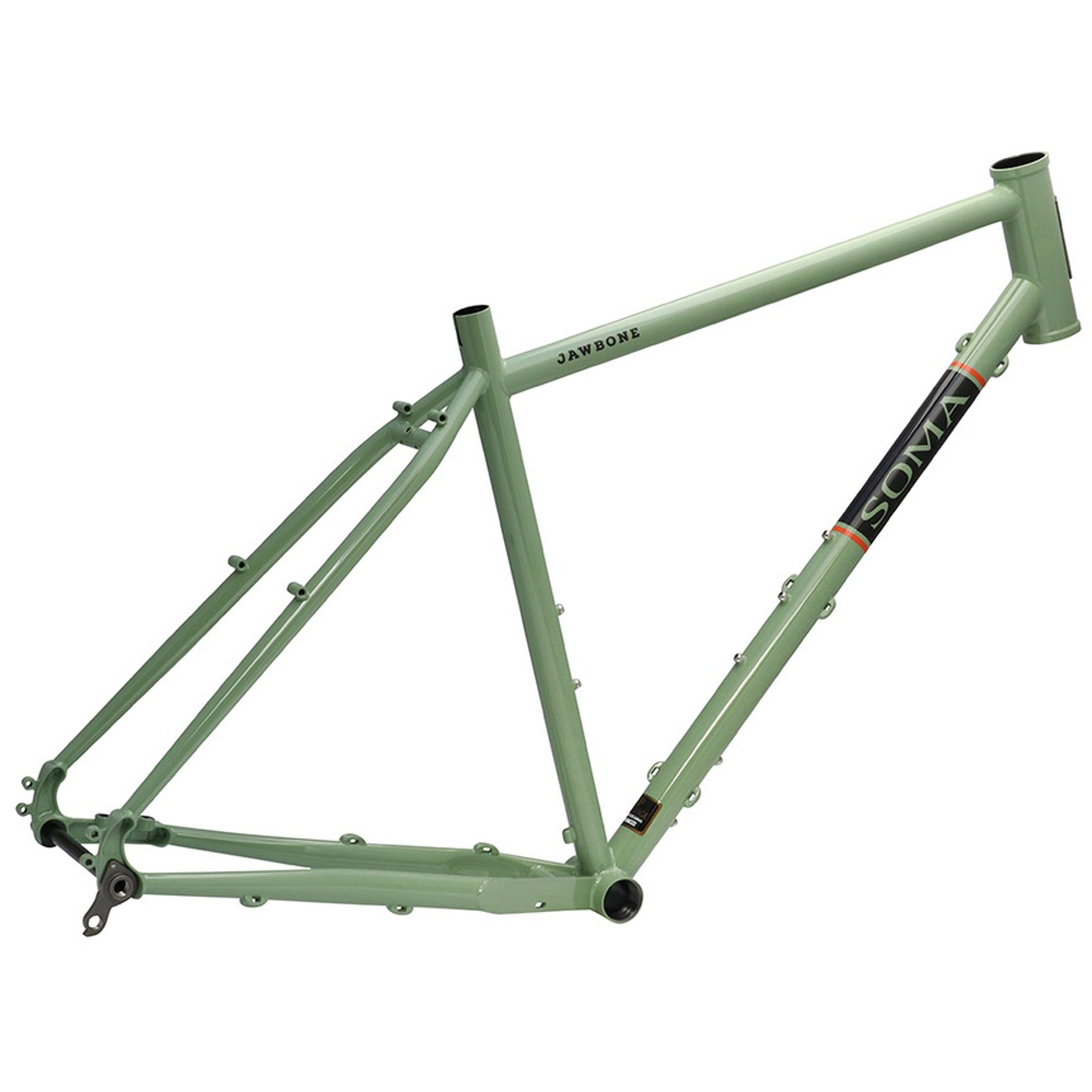

Soma Jawbone A-Type Frame, 52cm, 650b – Sage Green
Hay existencias
– The Jawbone A-Type frame is the perfect platform to build drop bar mountain touring and bike packing rig
– Tange Prestige heat-treated butted CrMo steel; butted CrMo rear end
– Flat mount disc brake tabs on rear

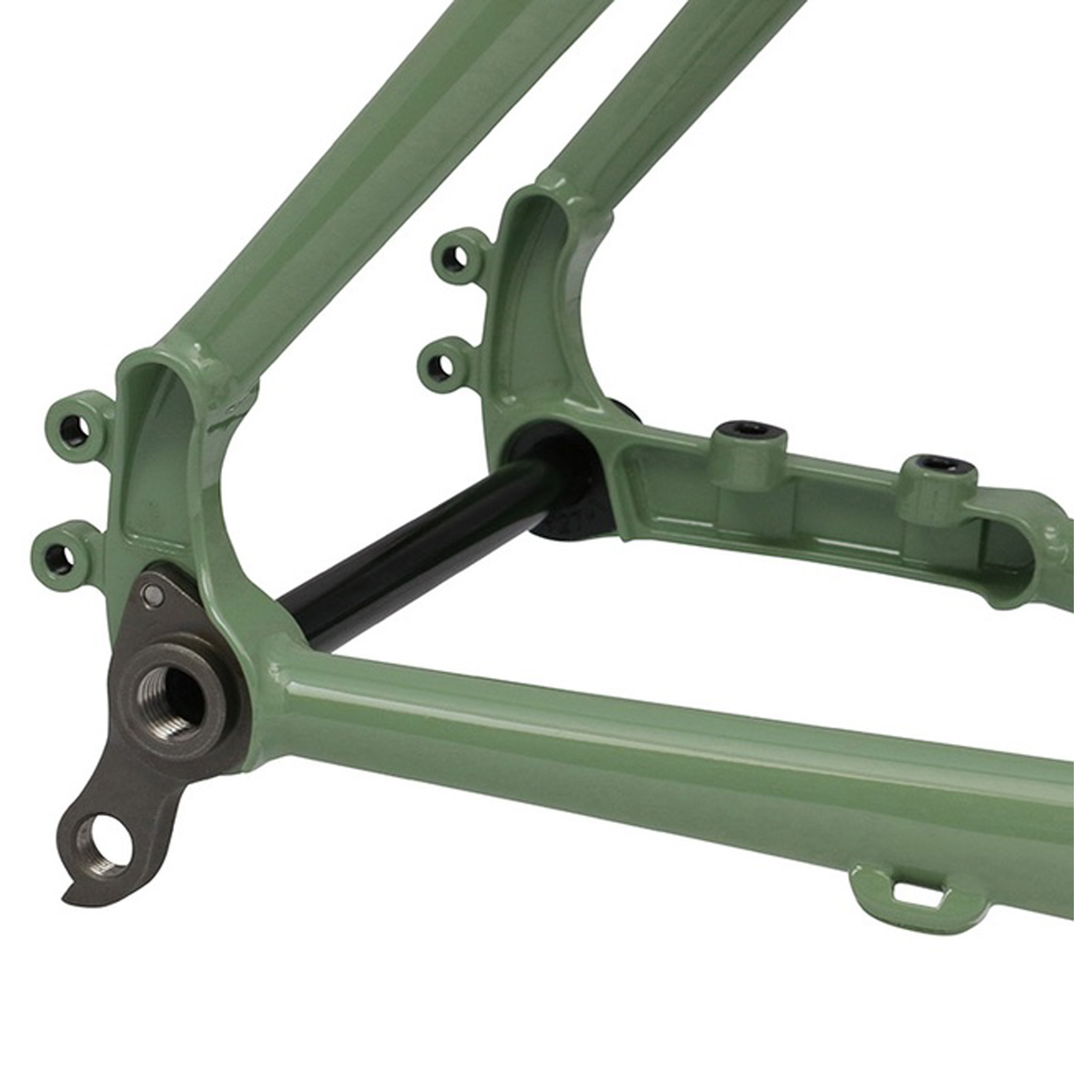

– Investment cast vertical dropout with replaceable stainless steel hanger. 12 x 142mm thru-axle
– Front derailleur compatible (bottom pull)
– Headset for optional 1-1/8″ matching fork: SHIS: ZS44/28.6 | ZS44/30. If running a tapered steerer fork, get an EC44 lower cup
– Rear rack and fender eyelets
– Two sets of bottle cage bosses; one set of cargo cage bosses on downtube

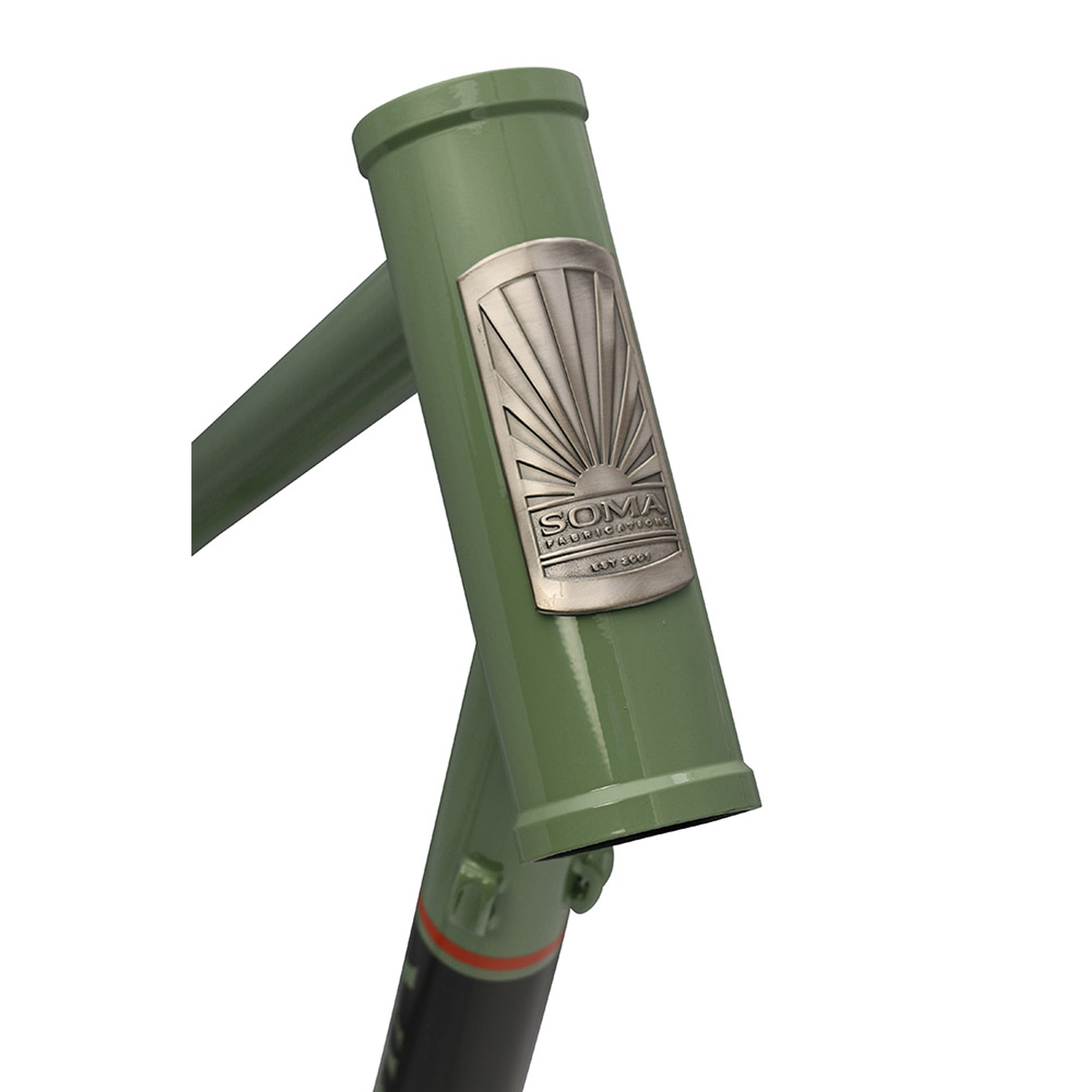

– 44mm headtube: Fits 1-1/8″ steerer tubes and tapered steerer tubes with a headset swap
– 27.2mm post size/28.6mm frt. der. size/29.8mm seat collar, 73mm bottom bracket (English threads)
– Tire Width Range: 27.5 x 47mm to 2.5” / 700c x 38mm to 29 x 2.25”
– For matching fork please consider YC4022
Model: Jawbone A-Type
Size: 52cm
Seat Tube (C-T): 450mm
Top Tube (Effective, C-C): 539mm
Chainstay: 445mm
Head Angle: 70.5 Deg
Seat Angle: 73.8 Deg
Bottom Bracket: 73mm
Seatpost: 27.2mm
Front Derail: 28.6mm
| Peso | 11 kg |
|---|---|
| Brand | Soma |
| Barcode | 849430050427 |
